The sanitary Butterfly valve is one kind of center sealing valve, The valve body and valve clack are machining from high class forging stainless Steel. The Silicon Rubber, EPDM and PTFE are used as sealing material. The PTFE material within excellent chemical resistance and lubricity to ensure can be used for widely conditions than common rubber sealing material and lightly operation. The main advantage of the valve is that can prevent the rubber drop off which will damage/the materials, the valve can be used in sterile pharmacy power, powered milk, starch, sugar industry etc...
- Parameters

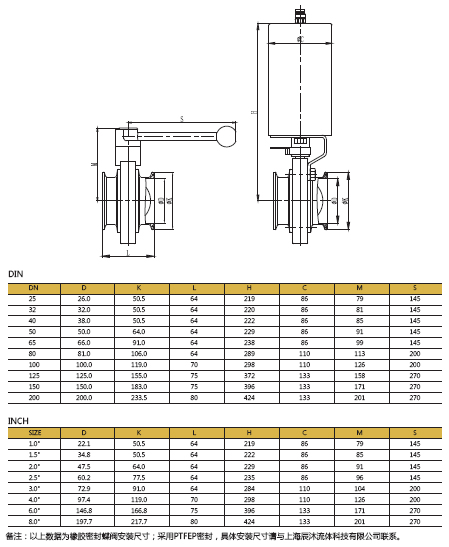

- Data sheet
Size: DN25~DN200、1.0“~8.0”
Operating Pressure: 0~1.0Mpa
Compress Air Pressure: 0.5~0.8Mpa
Operating Temperature: -20℃~+135℃（According to seal material）
Body Material：304/316L(Touch media parts）
304（Not touch media parts）
Seal Material: EPDM（Standard）
Silicon、NBR、Viton(Option)
Surface: Ra<0.8 (Touch media parts)
Ra<1.6(Not touch media parts)
Control Mode: Manual, Normal ON, Normal OFF, Double ActionConnection Standard: DIN11850 series 2、3A、ISO1127 series 1
Connection: Welding, Tri-clamp, Flange, Thread etc...
Spare Parts: Solenoid valve, Proximity switch, Intelligent controlle etc...
