Clamp
The sanitary clamp design for DIN32676, 3A, ASME BPE, SMS, ISO1127, BS4825-3 standards ferrule. The clamp was casted from Stainless steel with polishing. The EN 10204 3.1B certificate can be provided.
- Parameters

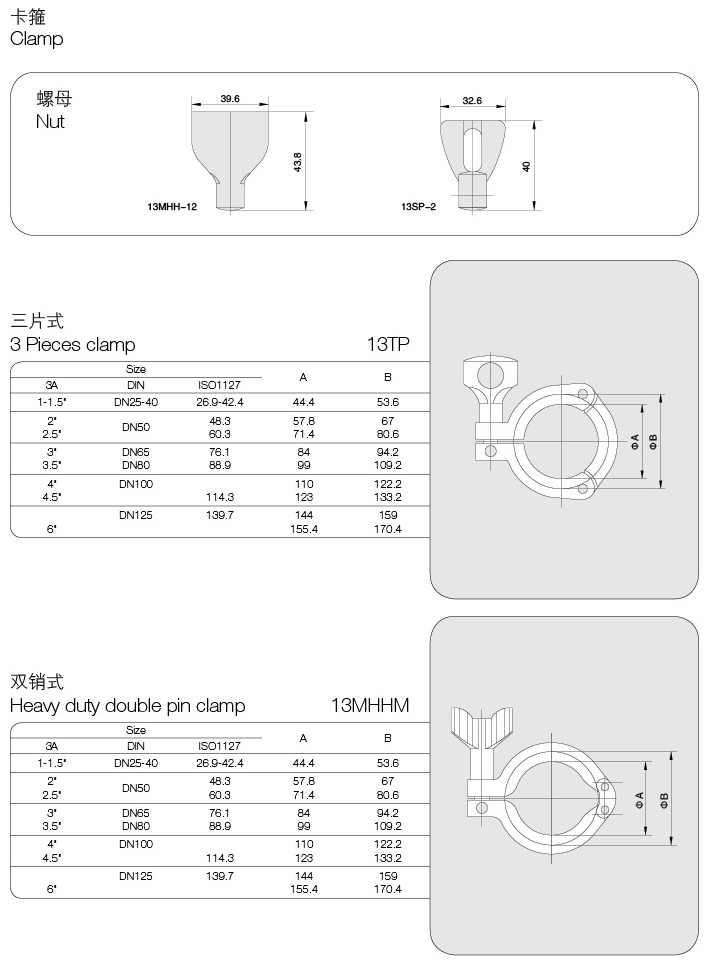

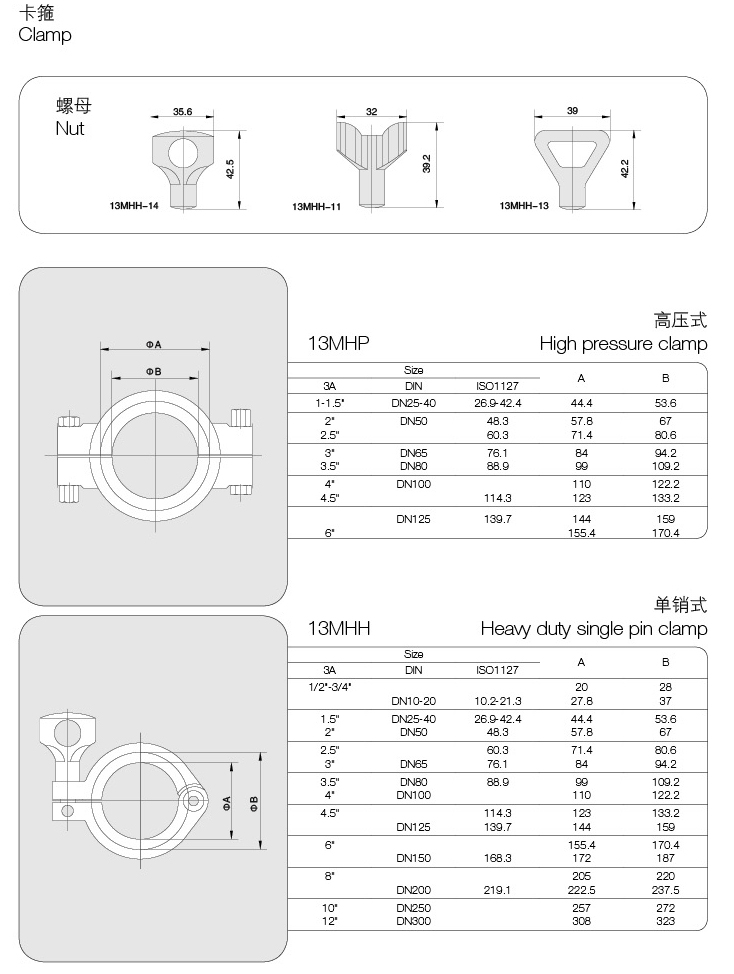

- Data sheet
Standard: DIN32676、BS 4825-3、ASME BPE、3A、SMS、GB、ISO2852
Size: DN10~DN200、0.5"~12.0"、ISO13.5~ISO273
Material: 304 、316（Option）
Clamp Mode: single bolt, double bolt, triple bolt, heavy duty
Surface Preparation: Vibration Polishing, Polishing(Option)
