Double Seat ValveHome > Products > Double Seat Valve
Double Seat mix-proof Valve
Double seat mix-proof valve used for anti-mixing operation when two kinds of fluid pass through one valve, to ensure the different fluid or washing liquid isolated in the complex piping system and achievie the best benefits. The vavle array can achieve the automatic control for the complex piping system. The double seat mix-proof valve widely used for beer industry, beverage industry, milk industry, pharmacy industry, Biotechnology industry etc...

Size: DN40~DN100、1.5"~4.0”

Operating Pressure:0~0.5Mpa

Compress Air Pressure: 0.6~0.8Mpa

Operating Temperature:-20℃~+135℃(According to seal material)

Body Material:304, 316L(surface in contact with product)

             304(surface not in contact with product))

Seal Material: EPDM(Standard)

              Silicon Rubber, NBR, Fluorinated rubber(Optional)

Actuator Shell: 304

Surface:Ra<0.8(surface in contact with product)

              Shot Blasting(surface not in contact with product)

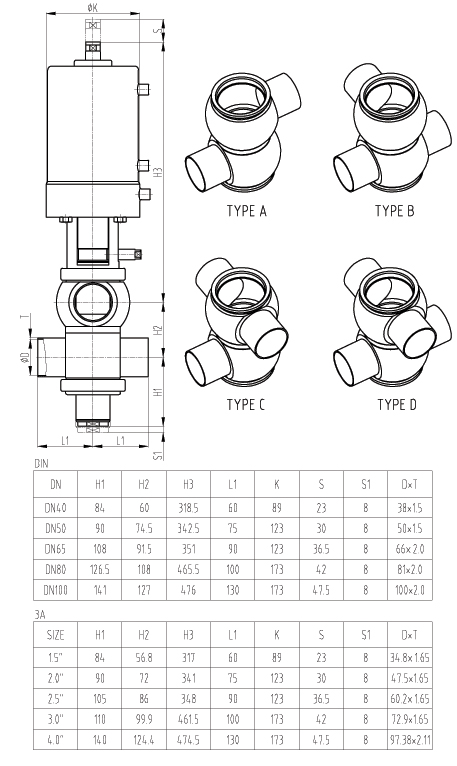

Type: TypeA, TypeB, TypeC, TypeD

Connection Standard: DIN series 2、3A、ISO1127 series 1

Connection: Welding, Tri-clamp, Thread etc...

Spare Parts: Solenoid valve,Proximity switch,Intelligent controller etc...
