Safety Valve
The Sanitary Safety Valve normally used for overpressure protection of tank and vessel, also used for overpressure protection of instruments in piping system. The sanitary safety valve is the specially valve which should be strictly checked and inspected before ex-works and should check and inspect again on site if possible. The valve widely used in food industry, beverage industry, pharmacy industry and beer industry.
- Parameters

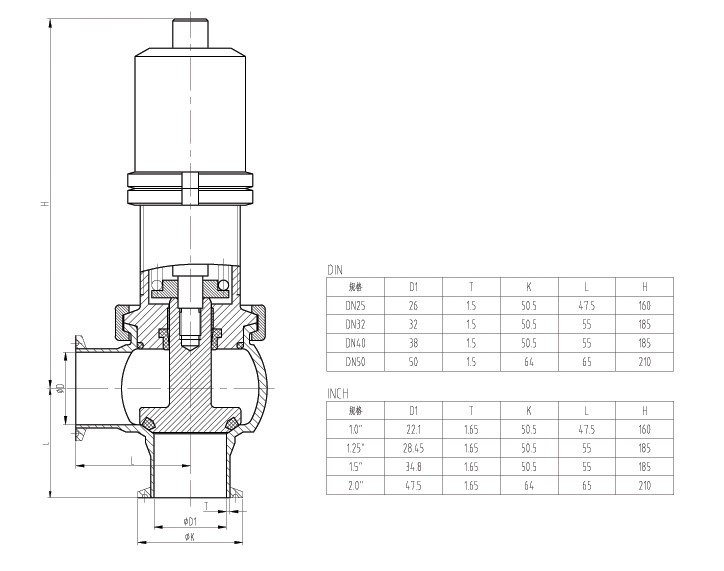

- Data sheet
Specification: DN15-DN100,3/4"~4.0"
Protect Pressure: 0~1.0Mpa adjustable
Operating Temperature: -20℃~+135℃（According to seal material）
Environment Temperature：-10℃~+60℃
Body Material：304/316L(Touch fluid parts）
304（Not touch fluid parts）
Seal: EPDM（Standard）
Silicon Rubber, Vulcanized rubber（Option）
Surface：Ra<0.8(Touch fluid parts）
Shot Blasting or Electrolysis（not Touch fluid parts）
Connection Standard: DIN series 2、3A、ISO1127 series 1
Connection: Welding, Quick Joint, Thread etc...
