Single seat tank Valve
Single Seat Tank Valve can meet the high calss requirement of process for safety and sanitary, the valve used in tank bottom for material discharge in food industry, pharmacy industry and fine chemistry industry.
- Parameters

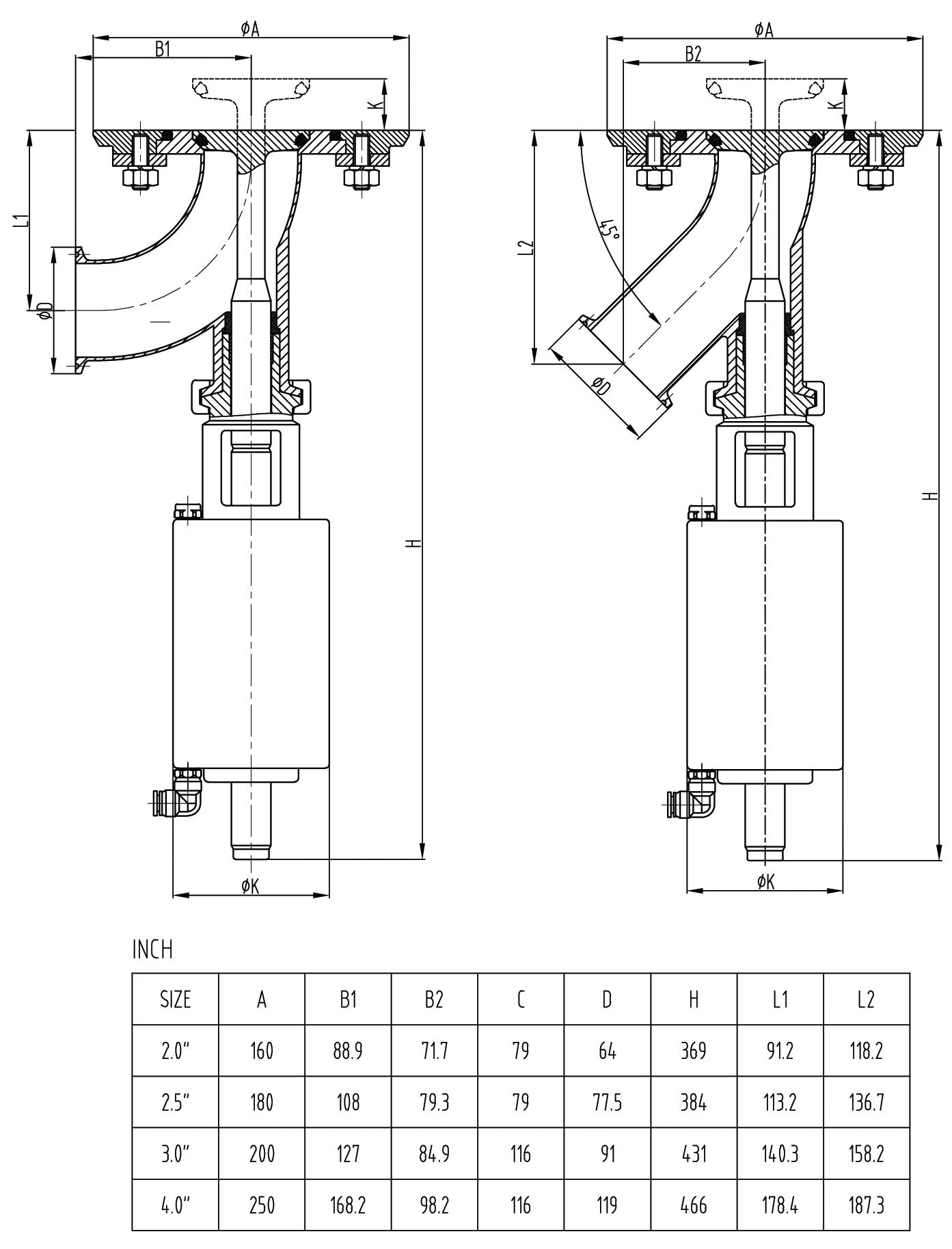

- Data sheet
Specification: DN50~DN100、2.0”~4.0”
Operating Temperature:0~0.5Mpa
Air compressor Pressure: 0.5~0.8Mpa
Operating Temperature: -20℃~+135℃（According to seal material）
Body Material：304/316L(Touch fluid parts）
304（Not touch fluid parts）
Seal: EPDM（Standard）
Silicon Rubber, Vulcanized rubber,NBR （Option）
Operation: Manual, pneumatic
Acurator material: SS304
Surface：Ra<0.8(Touch fluid parts）
Shot Blasting or Electrolysis（not Touch fluid parts）
Connection Standard: DIN series 2、3A、ISO1127 series 1
Connection: Welding,Clamp connection, Flange, Thread etc..
Spare Parts: Solenoid valve, Proximity switch, Intelligent controller etc...
