Angle Valve(Thread connection)
The Thread Connection Angle Valve were widely used for piping system ON/OFF control in food industry, pharmacy industry and chemical industry. The steam piping lines in Sterilizer, Sterilizing machine, dry cleaning machine and clothes dryer machine can choose the thread connection angle valve.
- Parameters

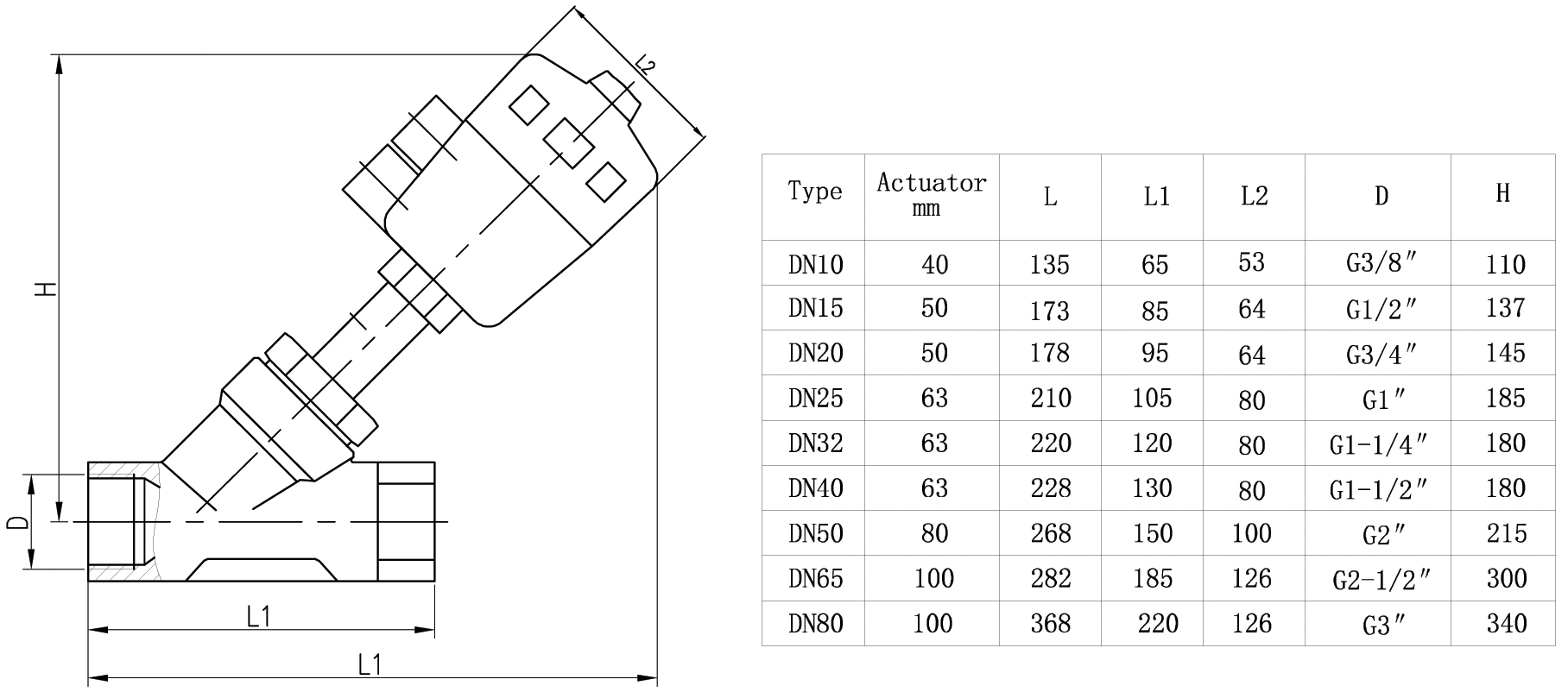

- Data sheet
Size：G3/8~G3.0
Operating Pressure: 0-1.6Mpa
Operating Temperature: -10℃～+180℃
Environment Temperature: -10℃～+60℃
Body Material: 304/316
Seal Material: PTFE
Actuator Shell Material : PA、304
Fluid: Neuter gas、Air、Water、Steam
Thread : BSPT,NPT
Operating Mode： Pneumatic
