The single seat valve can meet the highest requirement in the sanitary process about the hygienic and safety. The valve adopt well-rounded module design and widely used in the fluid industry, can be used for shutoff valve with 2-3 outlets and reversing valve with 3-5 outlets.
- Parameters

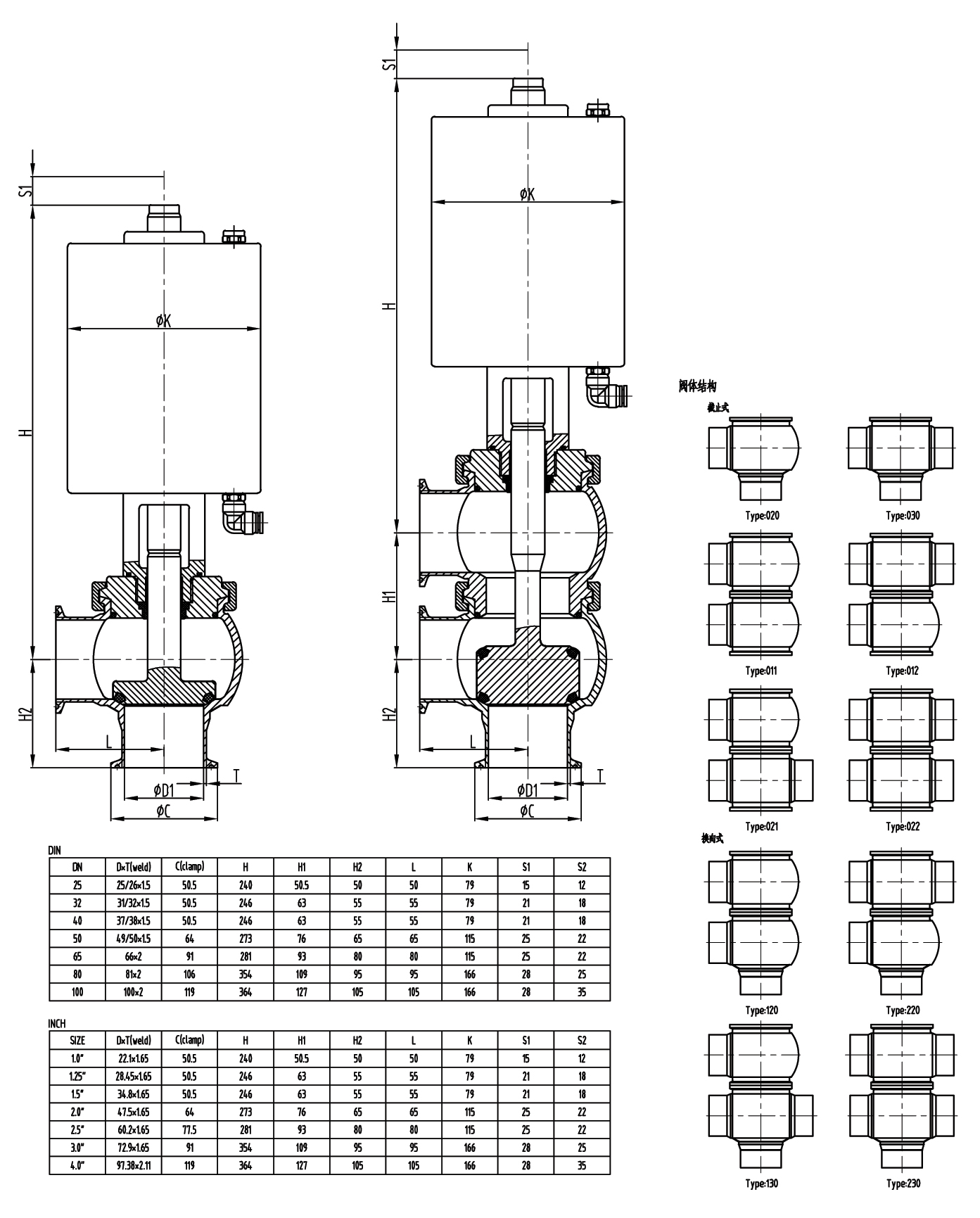

- Data sheet
Size: DN25~DN100、1.0“~4.0”
Operating Pressure：0~0.5Mpa
Compress Air Pressure: 0.5~0.8Mpa
Operating Temperature： -20℃~+135℃（According to seal material）
Body Material：304, 316L(Touch fluid parts）
304（Not touch fluid parts））
Seal Material: EPDM（Standard）
Silicon, NBR, Viton(Option)
Actuator Shell: 304
Surface：Ra<0.8(Touch fluid parts）
Shot Blasting（not Touch fluid parts）
Connection Standard: DIN11850series 2、3A、ISO1127 series 1
Connection: Welding, Tri-clamp, Thread etc...
Spare Parts: Solenoid valve,Proximity switch,Intelligent controller etc...
