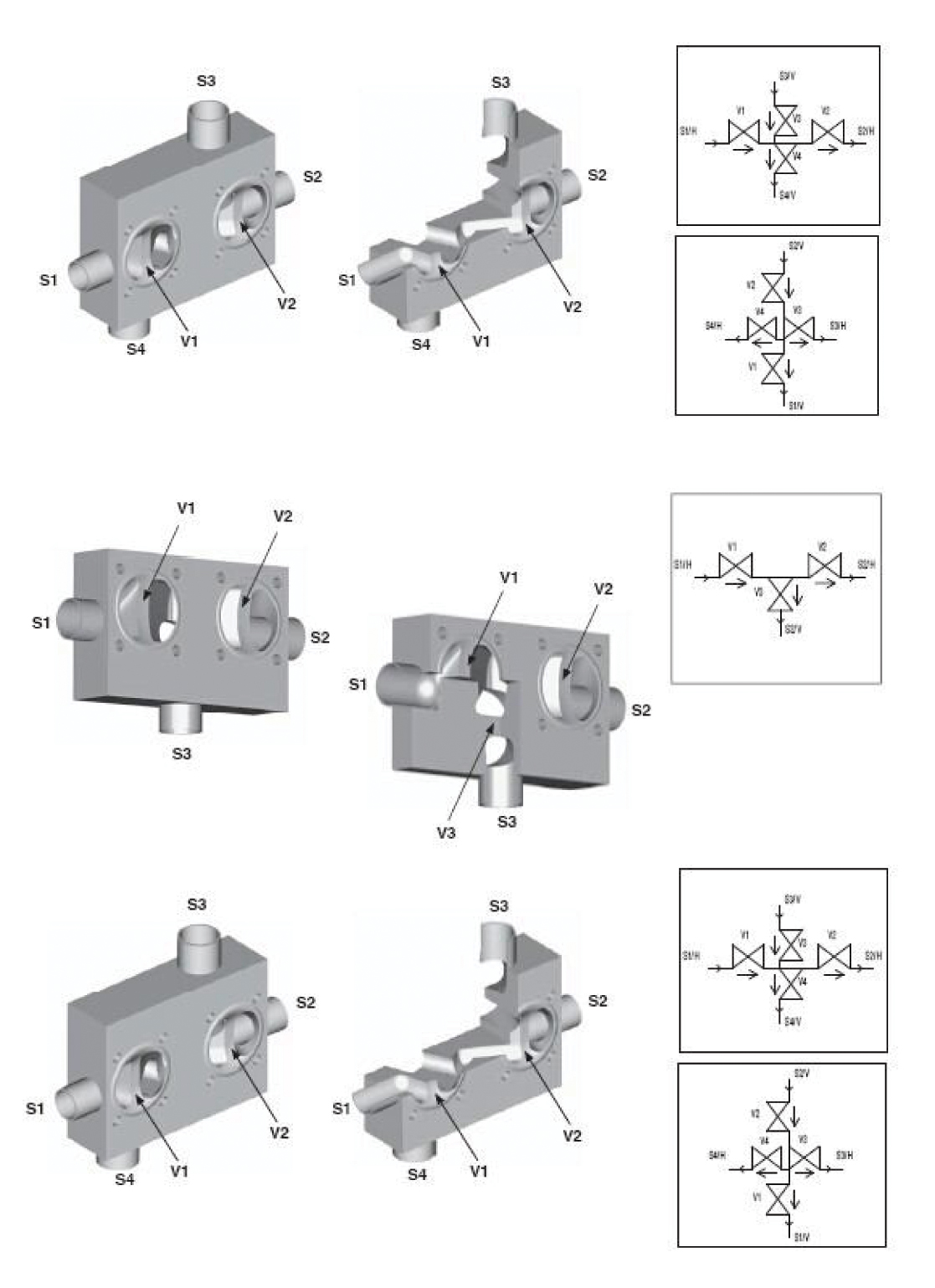

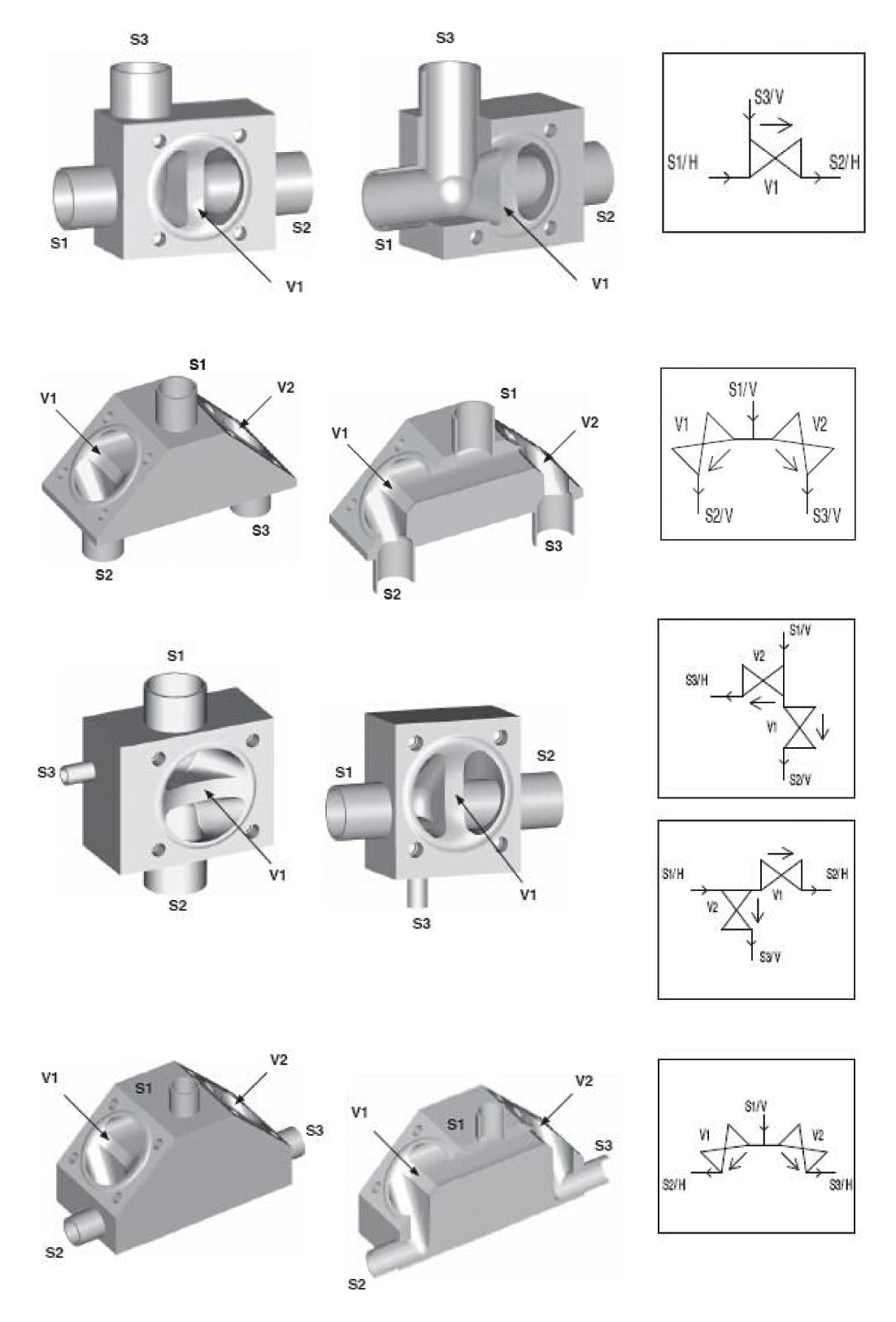

The Multi-port diaphragm valve can produced by customized designing to meet different producing process. The entire valve is machining from forging stainless steel parts.The sterile working conditions such as pharmacy, Vintage, Dairy,products, Beverage, Cosmetics etc producing and Hygienic water for semiconductor industry can choose the Multi connection Diaphragm Valve.
- Parameters
- Data sheet
Size：DN6~DN80、1/4"~3.0"
Operating Pressure：Manual：0~1.0Mpa
Pneumatic：0~0.6Mpa
Operating Temperature：-20~+150℃（According to the Diaphragm Material）
Environment Temperature：-10~+60℃
Body Material：316L(surface in contact with product）
304（surface not in contact with product）
Seal Material: PTFE+EPDM（Standard）
Silicon、EPDM、 Viton（Optional）
Surface：Ra<0.4(surface in contact with product）
Shot Blasting or Electrolysis（surface not in contact with product）
Control Mode：Manual、NO、NC、A/A
Connection：Welding、Tri-clamp、Flange、Thread etc..
