Sanitary Ball Valve
The Sanitary ball valve is one kind of Sanitary valve used for fluid OFF function and other control, the entire vale housing transfixion design will not cause any fluid resistance. It is the best choice for viscosity fluid control. The valve is widely used in the food industry, beverage industry, brewing industry, pharmacy industry and chemical industry.
- Parameters

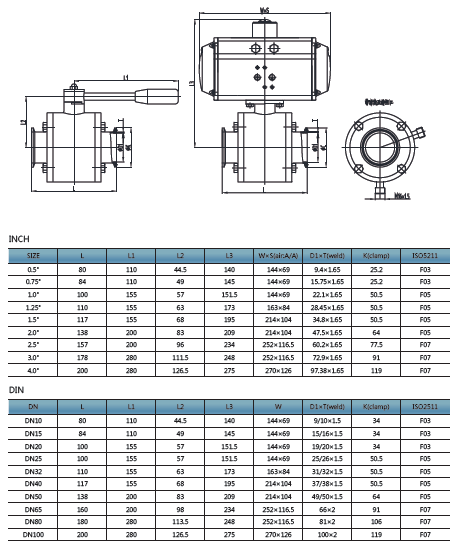

- Data sheet
Size：DN10~DN100、0.5"~4.0"
Operating Pressure：0~1.6Mpa
Operating Temperature：-20~+180℃
Body Material：304/316L(surface in contact with product）
304（surface in contact with product）
seat material: PTFE
Surface： Ra<0.8(surface in contact with product）
Sub-photochromic or polishing（surface not in contact with product）
Connection: Welding、Tri-cllamp、Flange、Thread etc...
Body Option：With emptying opening,With Cleaning inlet opening and emptying opening, Valve seat entire warp up etc...
Control Mode：NO、NC、A/A、Manually
Spare Parts：Solenoid valve、position feedback device etc...
